40x53 mm MEDIUM CALIBRE AMMUNITION
Medium Calibre Ammunition
40 x 53 mm
HV HEDP
Item #: AGC-MCA4053-HV-HEDP
​
A High Explosive Dual Purpose round that is effective against personnel and light armoured targets. Its blast fuzed nose ensures high performance even on oblique angle impacts.
Medium Calibre Ammunition
40 x 53 mm
HV HE-SD
​
Item #: AGC-MCA4053-HV-HE-SD
​​
A High Explosive round that expels fragments upon the blast, making it useful against personnel targets.
Medium Calibre Ammunition
40 x 53 mm
HV HEDP-SD
​
Item #: AGC-MCA4053-HV-HEDP-SD
​
A High Explosive Dual Purpose round with self-destruct capability to minimise potential damage. It is effective against armoured and personnel targets, and performs well on oblique angle impacts.
Medium Calibre Ammunition
40 x 53 mm
HV HE-SD
​
Item #: AGC-MCA4053-HV-HE-SD
​​
A High Explosive Self-Destruct round that expels fragments along with the blast, rendering it effective for use against personnel targets.
Medium Calibre Ammunition
40 x 53 mm
HV HEDP EBIX
​
Item #: AGC-MCA4053-HV-HEDP-EBIX
​
An Enhanced Blast Insensitive eXplosion (EBIX) round with enhanced blast effects, making it ideal for use against armoured and personnel targets, and especially in confined space operations. Compliant with STANAG 4493 & STANAG 4170.
Medium Calibre Ammunition
40 x 53 mm
HV HE EBIX
​
Item #: AGC-MCA4053-HV-HE-EBIX
​
An Enhanced Blast Insensitive eXplosion (EBIX) round that provides enhanced fragmentation for personnel targets. The round complies with STANAG 4493 & STANAG 4170.
Medium Calibre Ammunition
40 x 53 mm
HV HEDP-SD EBIX
​​
Item #: AGC-MCA4053-HV-HEDP-SD-EBIX
​
An Enhanced Blast Insensitive eXplosion (EBIX) round with self-destruct capability, designed to reduce collateral damage. Ideal for use in confined space operations. Compliant with STANAG 4493 & STANAG 4170.

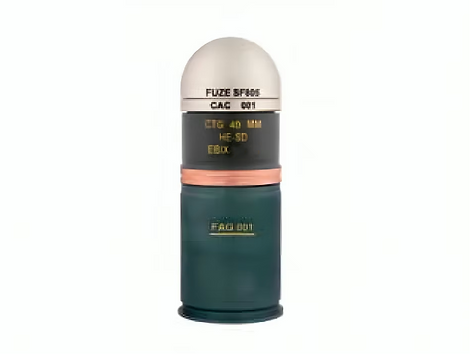

Medium Calibre Ammunition
40 x 53 mm
HV HE-SD EBIX
​​
Item #: AGC-MCA4053-HV-HE-SD-EBIX
​​
An anti-personnel round with self-destruct capability with enhanced lethality and blast effects compared to conventional High Explosive ammunition. Ideal for use in enclosed spaces such as tunnels and buildings. Compliant with STANAG 4493 & STANAG 4170, and safe for handling and storage.
Medium Calibre Ammunition
40 x 53 mm
HV ABM HE
​​
Item #: AGC-MCA4053-HV-ABM-HE
​
A High Explosive round with air bursting capability to provide higher lethality, fuze functionality and accuracy effective against defilade targets.
Medium Calibre Ammunition
40 x 53 mm
HV ABM F&B
​​
Item #: AGC-MCA4053-HV-ABM-F&B
​​
A Flash & Bang round with air bursting capability to provide realistic and safe day or night training.
Medium Calibre Ammunition
40 x 53 mm
HV TP
​​
Item #: AGC-MCA4053-HV-TP
​
A Target Practice Marker made of solid aluminium for effective training.
Medium Calibre Ammunition
440 x 53 mm
HV TP-T
​​
Item #: AGC-MCA4053-HV-TP-T
​
A Target Practice Marker made of solid aluminium that allows visibility of the projectile’s trajectory when fired, providing constructive visual feedback during target practice.
Medium Calibre Ammunition
40 x 53 mm
HV TPM
​​
Item #: AGC-MCA4053-HV-TPM
​
A Target Practice Marker round that releases a coloured dye cloud as a visible impact signature to provide feedback during training.
Medium Calibre Ammunition
40 x 53 mm
HV TPT-M
​​
Item #: AGC-MCA4053-HV-TPT-M
​
A Target Practice Marker with tracer capability to provide constructive visual feedback during training.
Medium Calibre Ammunition
40 x 53 mm
HV TP DNM
​​
Item #: AGC-MCA4053-HV-TP-DNM
​
A Target Practice Day & Night Marker for safe and realistic day or night training. It provides a clear impact signature that is visible to the naked eye, as well as through night vision devices utilising infrared or thermal sights.
Medium Calibre Ammunition
40 x 53 mm
HV TPT DNM
​​
Item #: AGC-MCA4053-HV-TPT-DNM
​
A training round for safe and realistic training or night. Its Target Practice Tracer Day & Night Marker provides an accurate track of the projectile’s trajectory that is visible to the naked eye, and tracer capability to track the projectile at night.
Medium Calibre Ammunition
40mm
AIRBURST DUAL PURPOSE
​​
Item #: AGC-MCA40-ADP
​
The 40mm Airburst Dual Purpose range of ammunition is High-precision rounds designed to penetrate light armour and release anti-personnel fragments. It allows the detonation of the round to be initiated after clearing obstacles or detonation in air to reach defilade targets. With dual purpose capability, the Airburst Dual Purpose round offers greater lethality with the same round when the need arises.
Available in Low Velocity and High Velocity Extended Range versions to suit different operational requirements.
Medium Calibre Ammunition
40mm
HIGH VELOCITY AIRBURSTING MUNITION SYSTEM
​​​
​
ST Engineering’s 40mm High-Velocity Air Bursting Munition System (HV ABMS) comprises:
• Air Bursting Munition (ABM)
• Programmable Airburst Weapon Upgrade Kit with Fire Control System (FCS) and Programming Kit (PK)
• ABM Rounds
The system is designed for use on existing 40mm automatic grenade launchers such as the STK 40GL Mk2, MK19 and CIS 40 AGL.
Air Bursting Munition
The HV ABM functions as a programmable time-fuzed round, detonated mid-air to effectively engage defilade targets. The Fire Control System includes a laser rangefinder to determine distance to target. The system processes the information and programmes the ABM through a portable Programming Kit (PK) to detonate the projectile at the desired point. A key benefit of the system is its ability to provide a significant overmatch against conventional systems, with rounds able to engage hidden or defilade targets. The system is suitable for use from a mounted vehicle or foot soldier.
